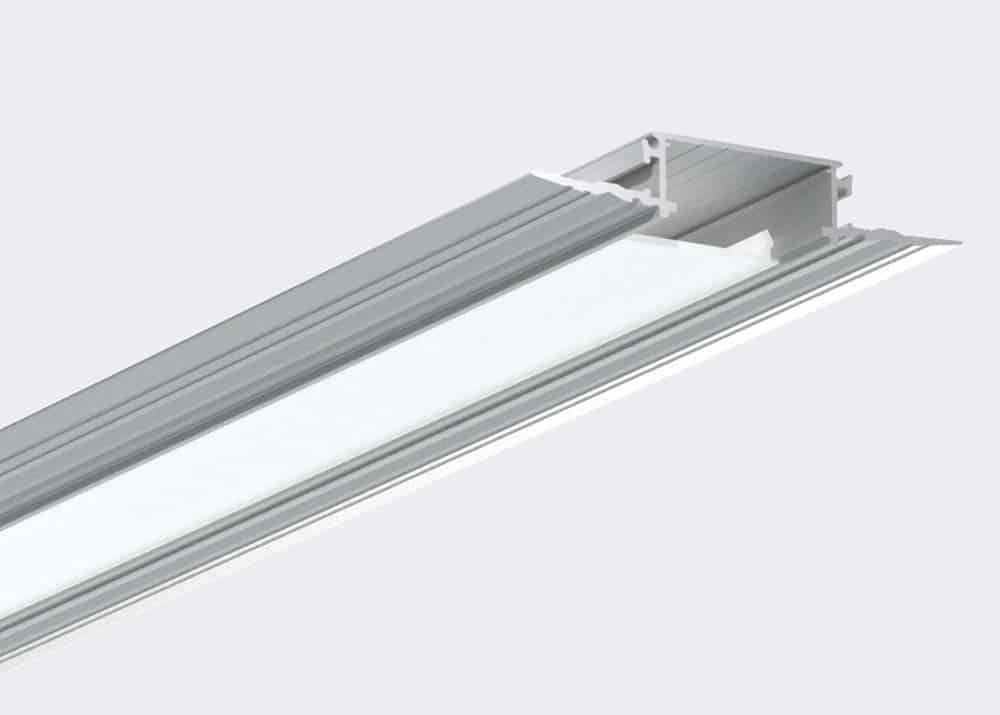

The 8870 Pro profile fits into any drywall ceiling without the worry any interference with the structure, it fits directly with standard gypsum panels for an impeccable finish The profile is designed to disappear into the structure so that the light source merges with the surface. The LED trays are perfectly smooth and allow the installation of one or two led strips side by side for maximum lighting power, or face to face for optimal light diffusion. This is a "Preferred Dark Tool" that we have used on countless project with great success.
A new feature: it can be used with all type B joiners to build a solid structure, and it fits directly with standard gypsum panels for an impeccable finish. Its refined look harmonizes perfectly with any design.
Features:

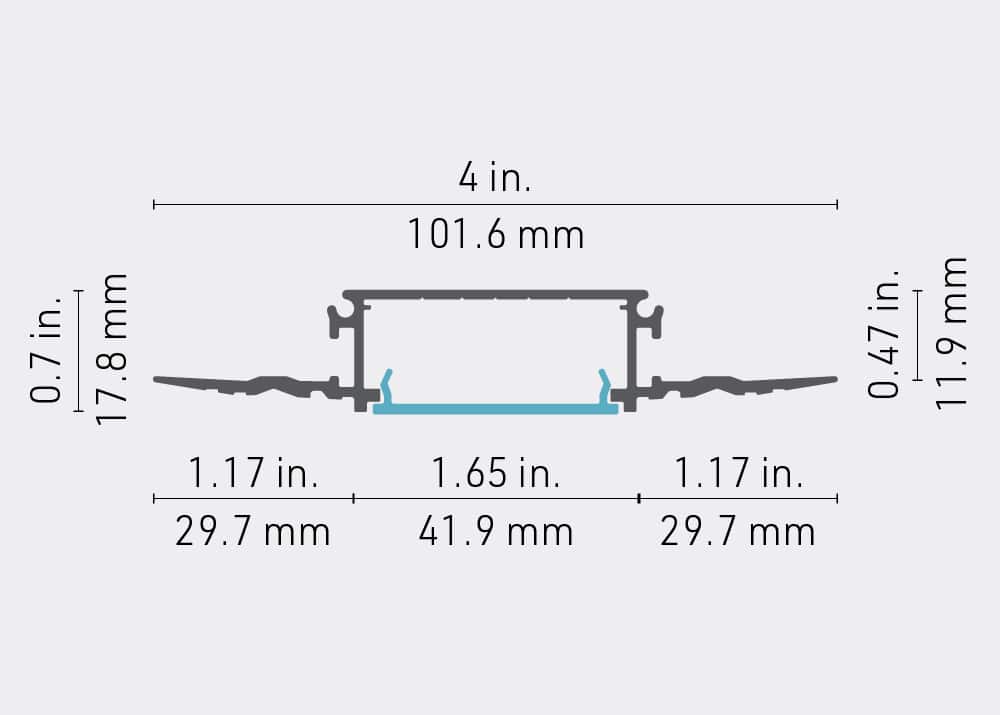

Available in 96 in (2.43 m); profile can be cut on site for easy and accurate installation
Fits directly over standard 5/8″ gypsum panels; can also accept ½” panels with 1/8″ shims installed on-site
On each side of the extrusion, the edges have grooves that reduce the space between the screws and the surface
LED trays designed for two light sources installed side-by-side (5.9 W/ft) for maximum light output or face-to-face for optimal light distribution
Dark Tools suggests that we use either one or two NEAT led strips @ 10w/m for maximum flexibility, however many other options are available upon request.
Many LED light sources to choose from 2400 K to 6200 K, including WarmDim, RGB and RGBW
Application guide for light sources of 10 mm (0.394″) or less in IP22
Bonus: PVC protector included with each profile so that that fixture is protected until the painting is finished and the final lens installs without mess.
*Please note: Colour swatches are for reference only and may not exactly match the final product
Shipping delay : On request
