Lumentruss

NIDUS 1200 cove

Price on demand

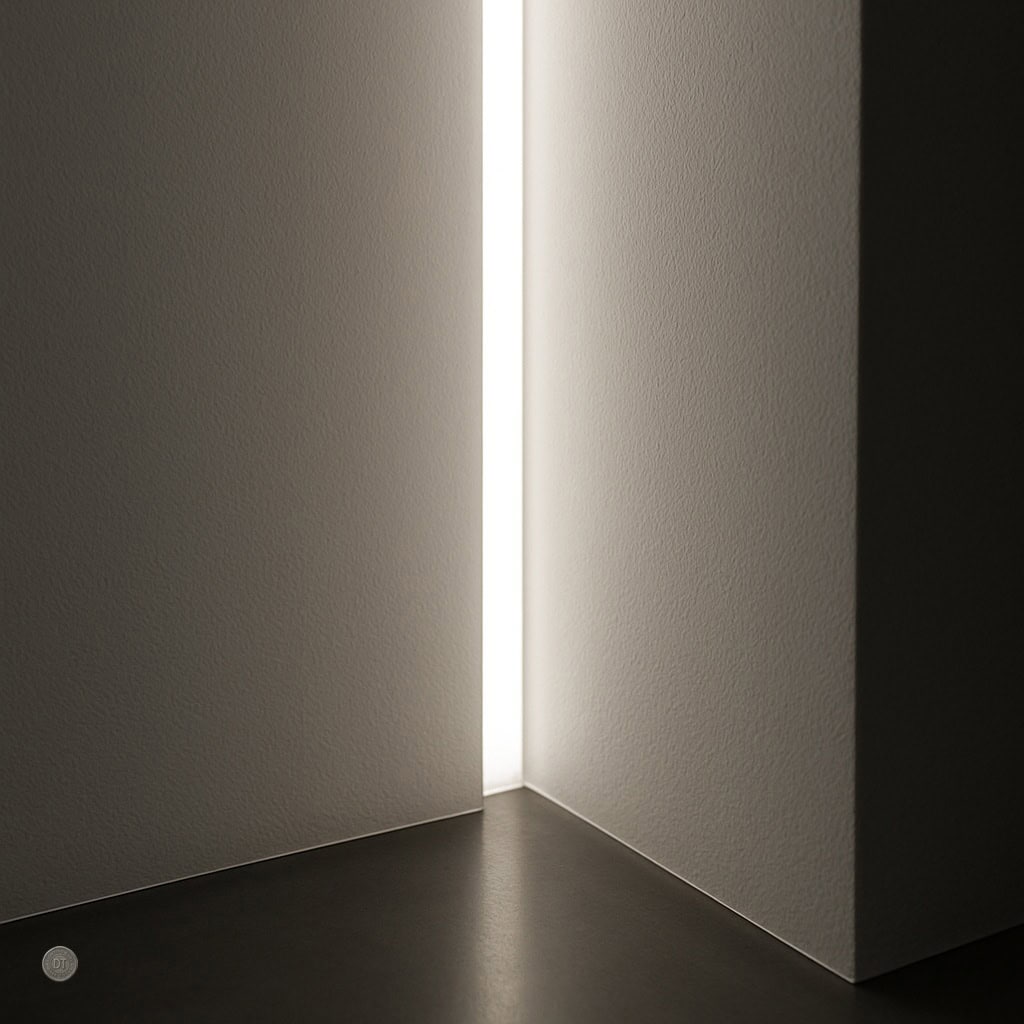

The NIDUS profile is an easy and affordable solution for lightgrazing a wall, while keeping the LED source concealed and the corner visually intact. Install over 2×3in. beams/joists, without the need to build elaborate wood structures, level with the gypsum panels, then mount the LED profile(s) at the position yielding…
  • The Dark Tools “Groove series” is a collection of unique pre-fab coves or trimless architectural details for any space

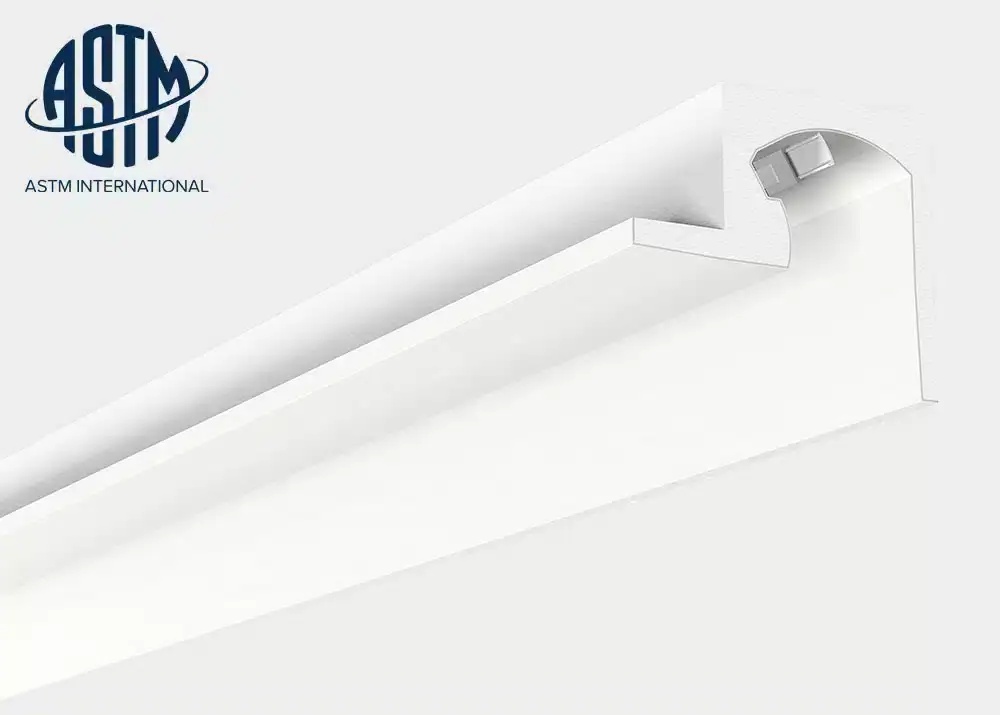

  • Shape made of architectural-grade extruded polystyrene foam for stiffness and a high R-factor, exterior surface reinforced with fiberglass for rigidity, finished in white plaster that is primable and paintable like a regular gypsum panel.
  • Flush installation with standard 1/2in. gypsum panels, or level with drywall mud to match seamlessly with 5/8in. panels.
  • Direct fit for the 1200 profiles in ALCOA 6063-T5 aluminum alloy for superior heat dissipation, allowing the use of the full range of 1000 Series lenses, for full control of the lighting effect.
  • Designed to give a uniform light without hot spots with series 1200, an opal lens and an many different LED engine of 120 LEDs per meter or more
  • Available only in sections of 8 feet (2.4m). Customer is responsible for cutting.

Fire Rated Material Type : NFPA CLASS C
(tested under ASTM E84. Similar to UL723, ANSI/NFPA No. 255 and UBC No. 8-1.)

Choose options

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request
