Features:

Single Circuit Power Distribution System
This system is engineered to provide flexible power delivery to lighting units. It features a single hot and neutral conductor rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V. Copper electrical conductors are housed within a thermoplastic, low-profile track section, ensuring both durability and a streamlined aesthetic.

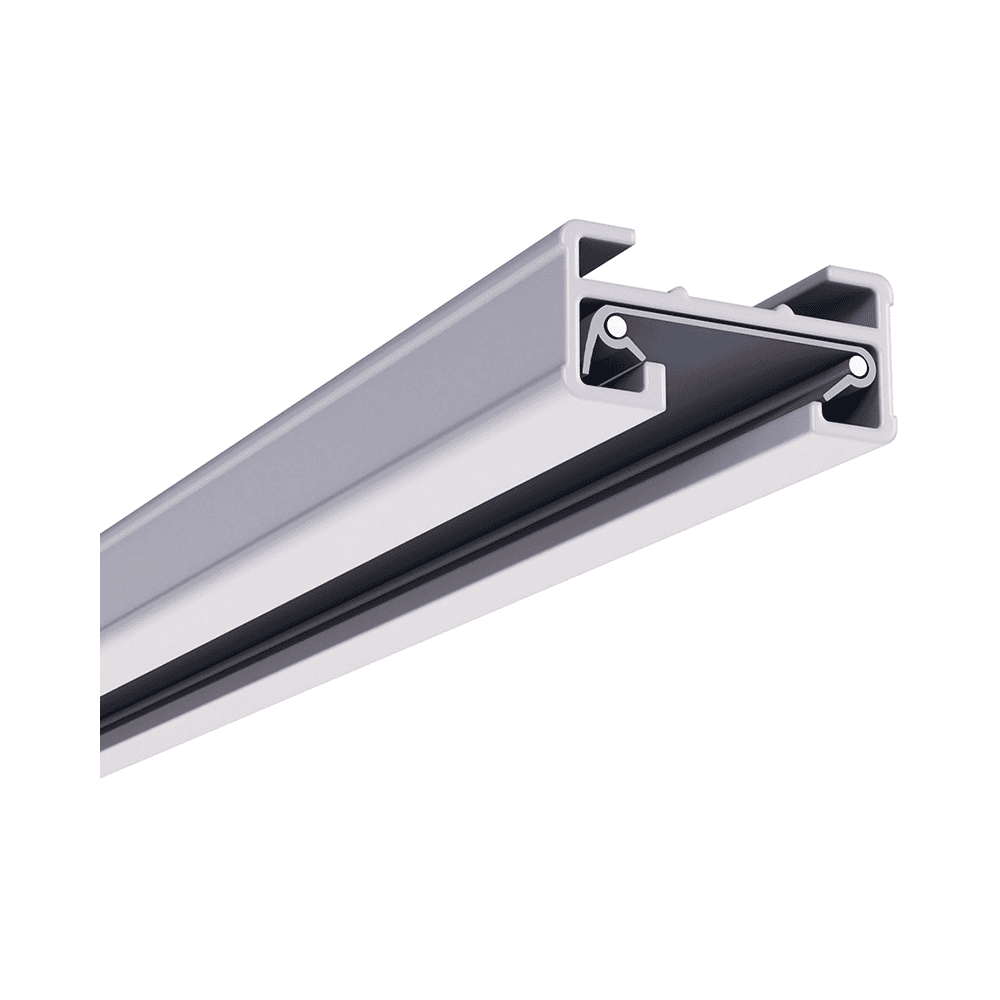

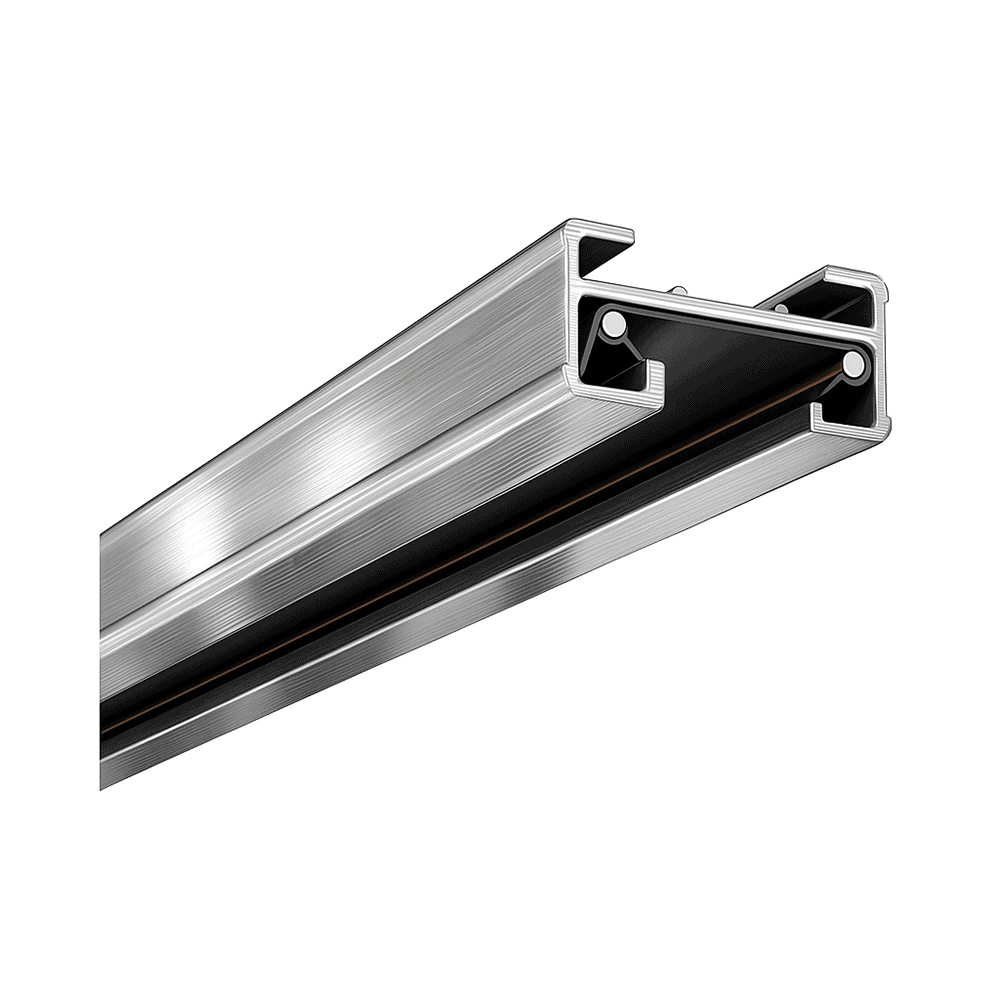

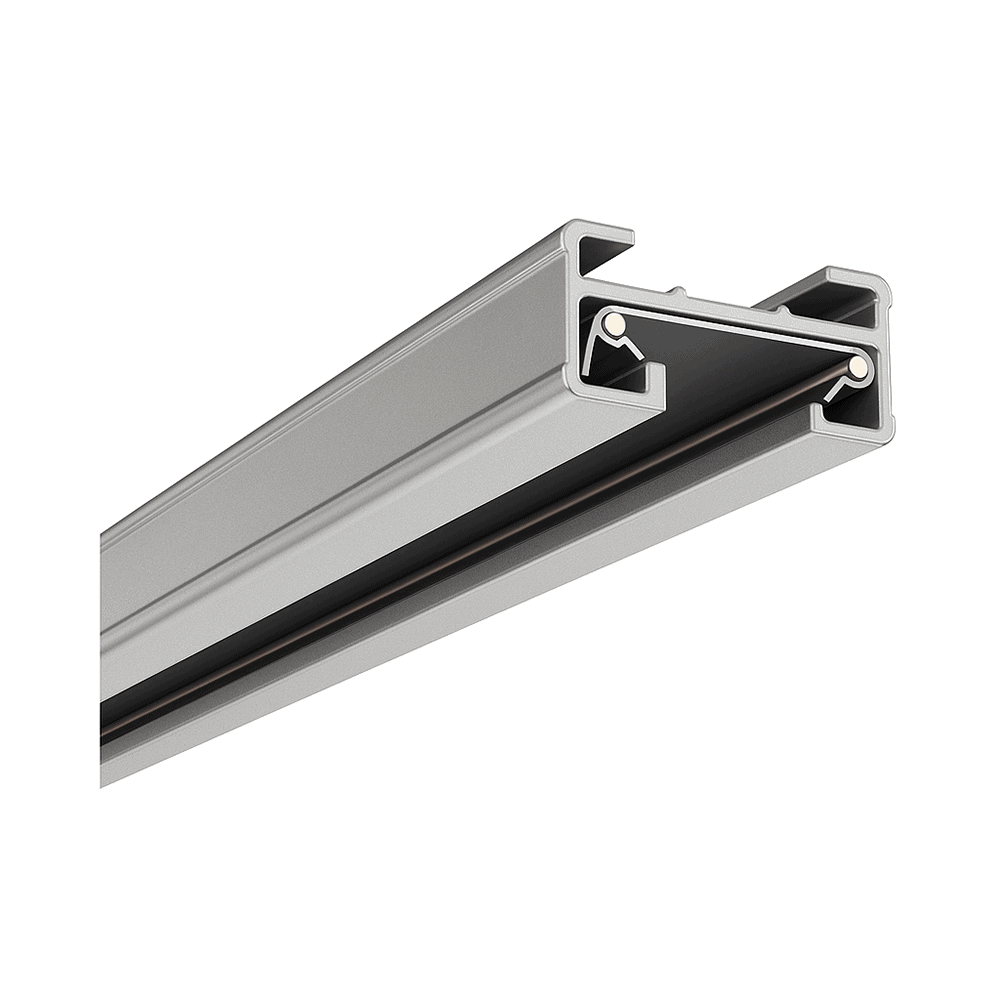

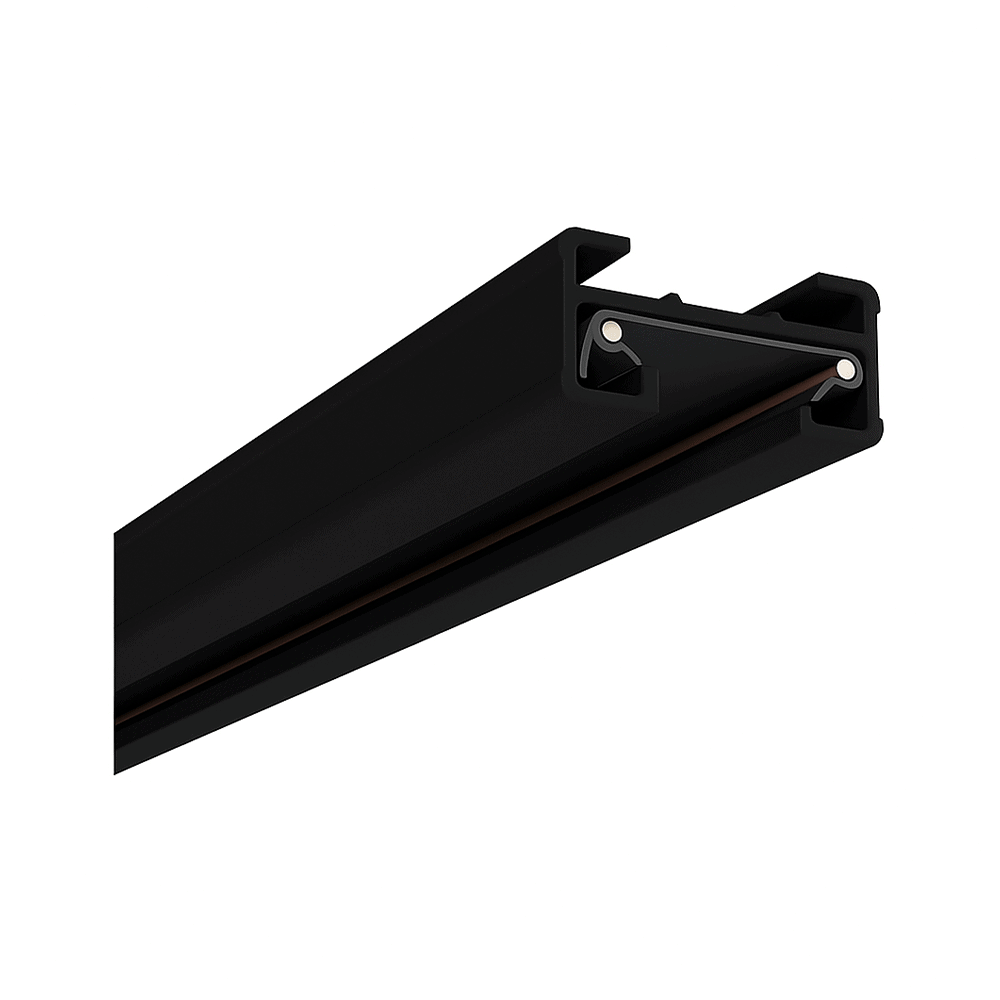

Extrusion

• Constructed of 0.06″ extruded aluminum with 0.045″ PVC bus bar support holding 12 gauge round bus bars. Polarity groove is located on face of track to indicate location of grounding conductor.

Electrical

• Single circuit power distribution system designed to supply lighting unit flexibly. Single hot and neutral conductors are rated for max. 20 Amps. Copper electrical conductors are concealed in thermo-plastic, low-profile track section.

Mounting

• This track is surface mounted using the supplied mounting hardware.

Compatibility

• Track system is compatible with all A-Line® and Juno® style track fixtures, accessories and connectors.

Labels

• cULus listed.
