B-Light

INSERTO MINI T

Price on demand

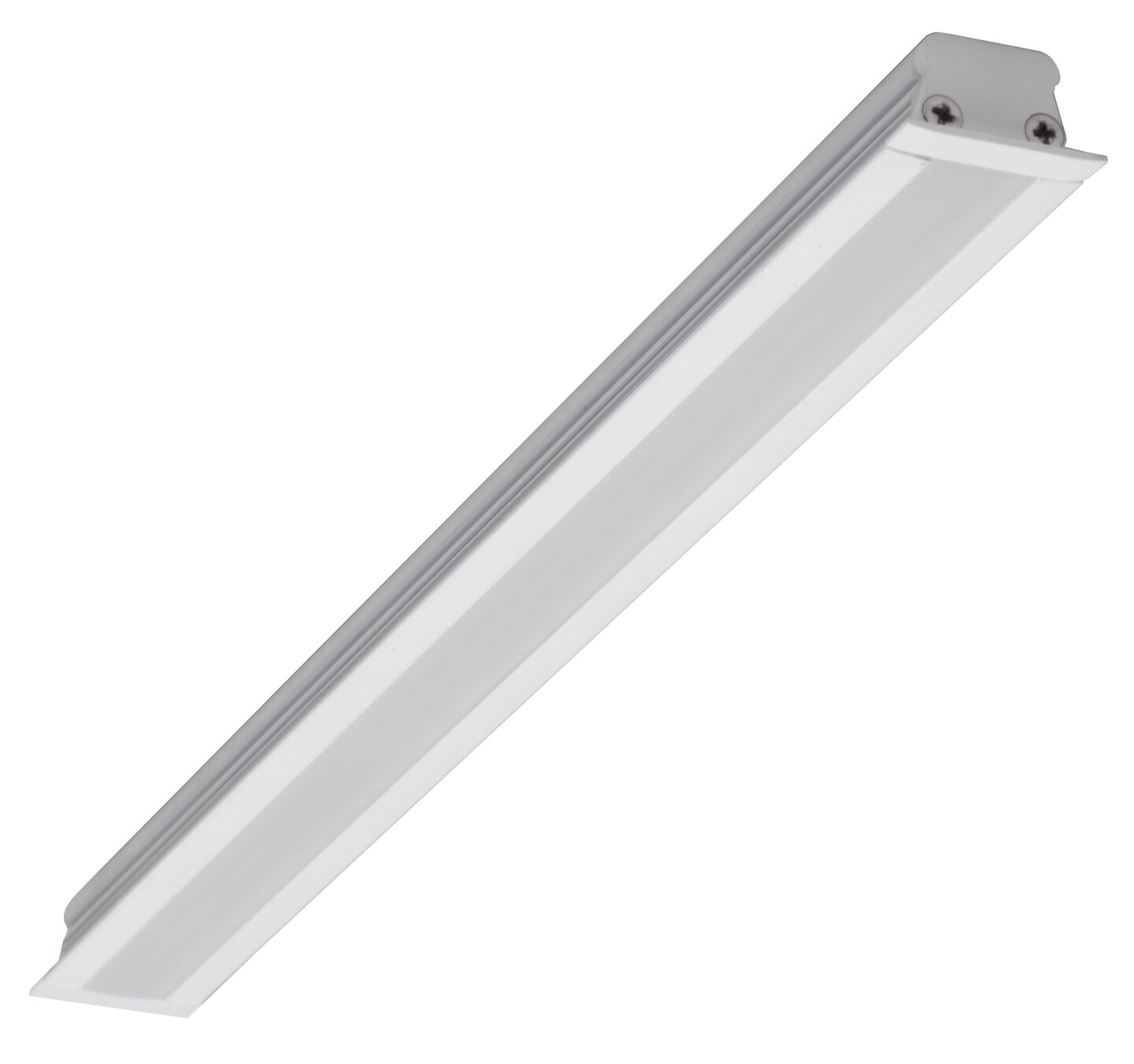

Linear wall and ceiling mounted luminaire with a depth of only 0.5"

Even light distribution across the entire surface for the white LED model

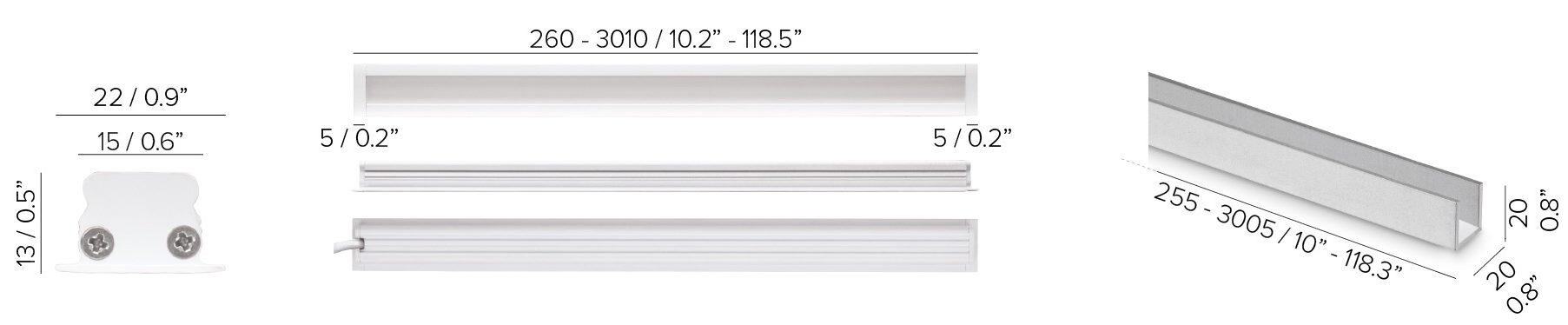

Available in increments of 9.8″: from 10.2” to 118.5”, custom made lengths available on request
Mounting in plasterboard using clips
Available with colour temperature 2700K CRI93, 3000K CRI93, 4000K CRI93 and RGB
Lamp wattage: 20W per meter at 24V DC, RGB 12W per meter at 24V DC. Features an board DC driver that ensures overcurrent protection and protection against wrong connections
Dimming available in Phase or 0-10v, other dimming options available upon request.
Suitable for dry location
Standards: UL 2108, CSA C22.2

Spec Sheet

Choose options

Finish Color

White Grey Anodized

Length

Color Temperature

2700K 3000K 4000K

Installation Location

Concrete Plasterboard

Add a note

Clear options

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request
