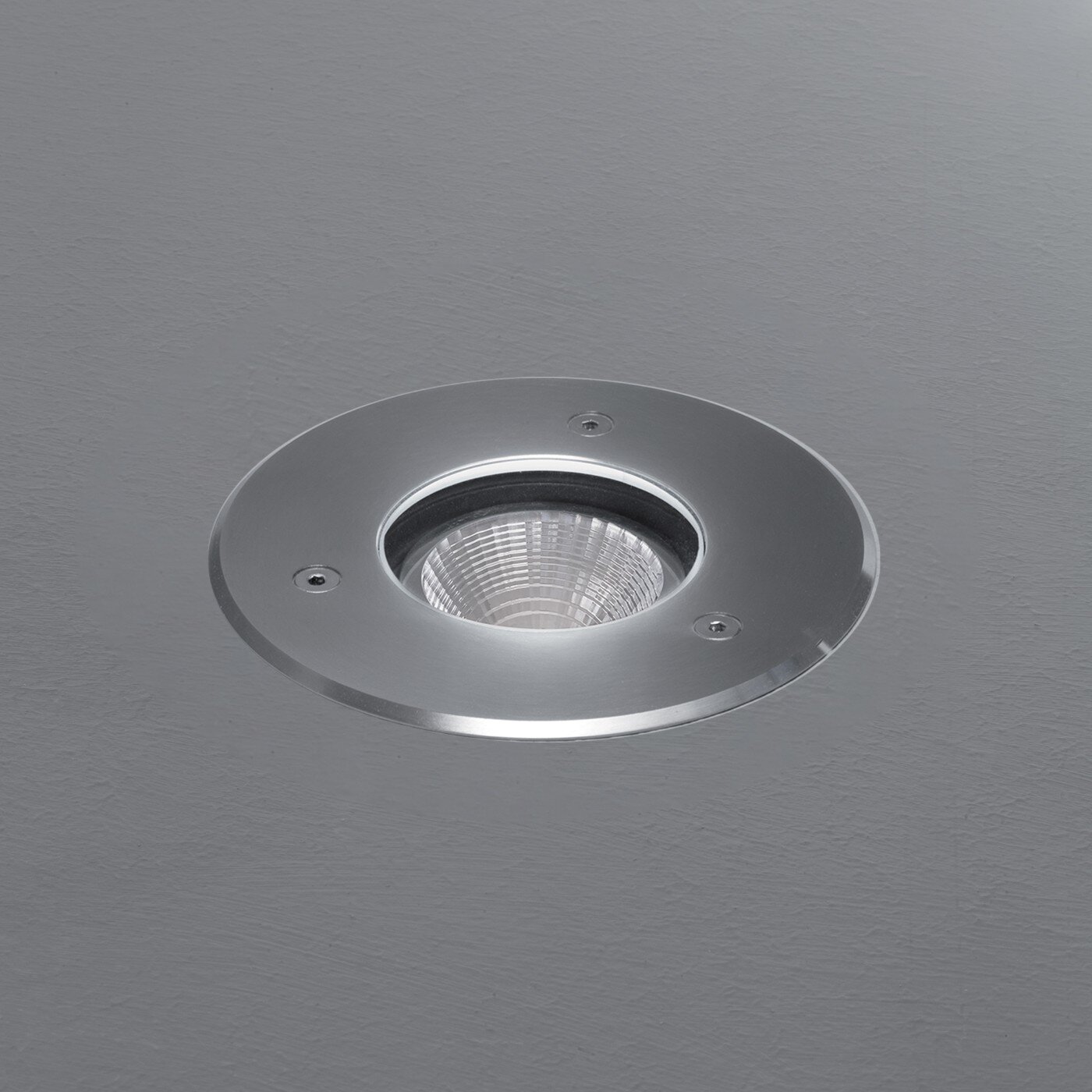

MEROPE 100

• Drive over load of 7,000 lbs
• Diameter: flush faceplate 3.1”, protruding faceplate 4.5”
• Built in protection from water infiltration and moisture. To guarantee a tightness over time, the fixture in installed without opening the optical compartment
• Beam angles: 20°and 30°. Tilt system from 0° to 20°allowing on site adjustment without opening the luminaire
• Available with color temperatures of 2200K CRI80, 2700K CRI93 or 3000K CRI93
• Wattage: 5W at 24V DC
• Built-in reverse polarity protection. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
• Two wires dimming : 1-10V. Other dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
• Standards: UL 2108, CSA C22.2

MEROPE 100 AD

• Drive over load of 7,000 lbs
• Diameter: flush faceplate 3.9”, protruding faceplate 4.5”
• Built in protection from water infiltration and moisture. To guarantee a tightness over time, the fixture in installed without opening the optical compartment
• Beam angles: 26°, 37°, 51°. Honeycomb for visual comfort to be separately ordered as accessory
• Available with colour temperature of 2700K CRI93, 3000K CRI93 and 4000K CRI93
• Wattage: 12W at 350 mA
• Dimming options: push button, potentiometer, 0-10V, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
• Standards: UL 2108, CSA C22.2
