Features:

Body

• Durable airtight aluminum body with heat sink to provide maximum airflow for the LED light source.

LED Characteristics

• This general application light fixture in 7 to 30 watt options that maintains uniform intensity producing up to 2325 lumens; with a typical CRI of 95.
• On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K color temperatures or DTW (2000 – 3000 K).

Dimming

• 100%-10% dimming capability.
• This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers. 0-10V dimming capability available with commercial driver (see dimming compatibility list).

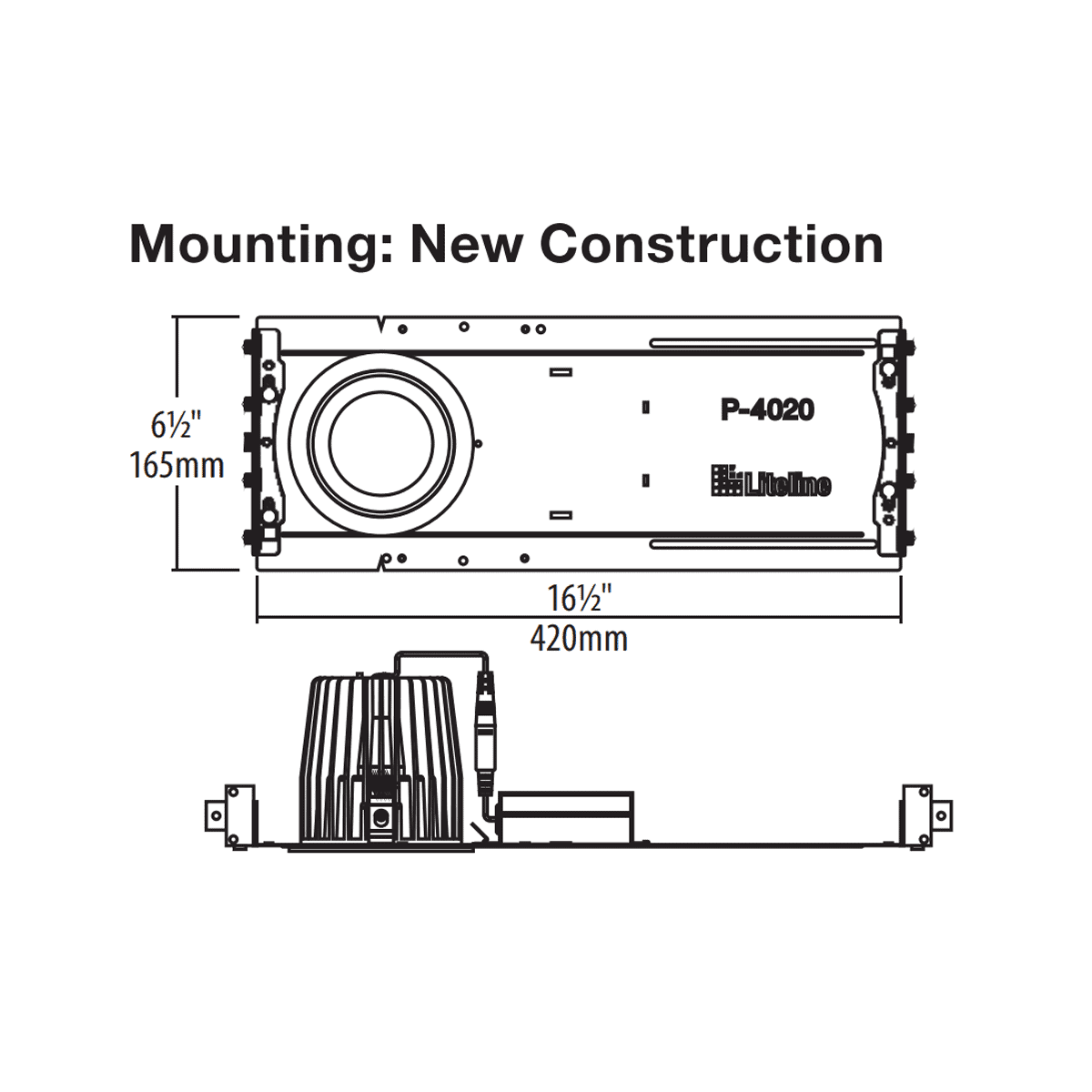

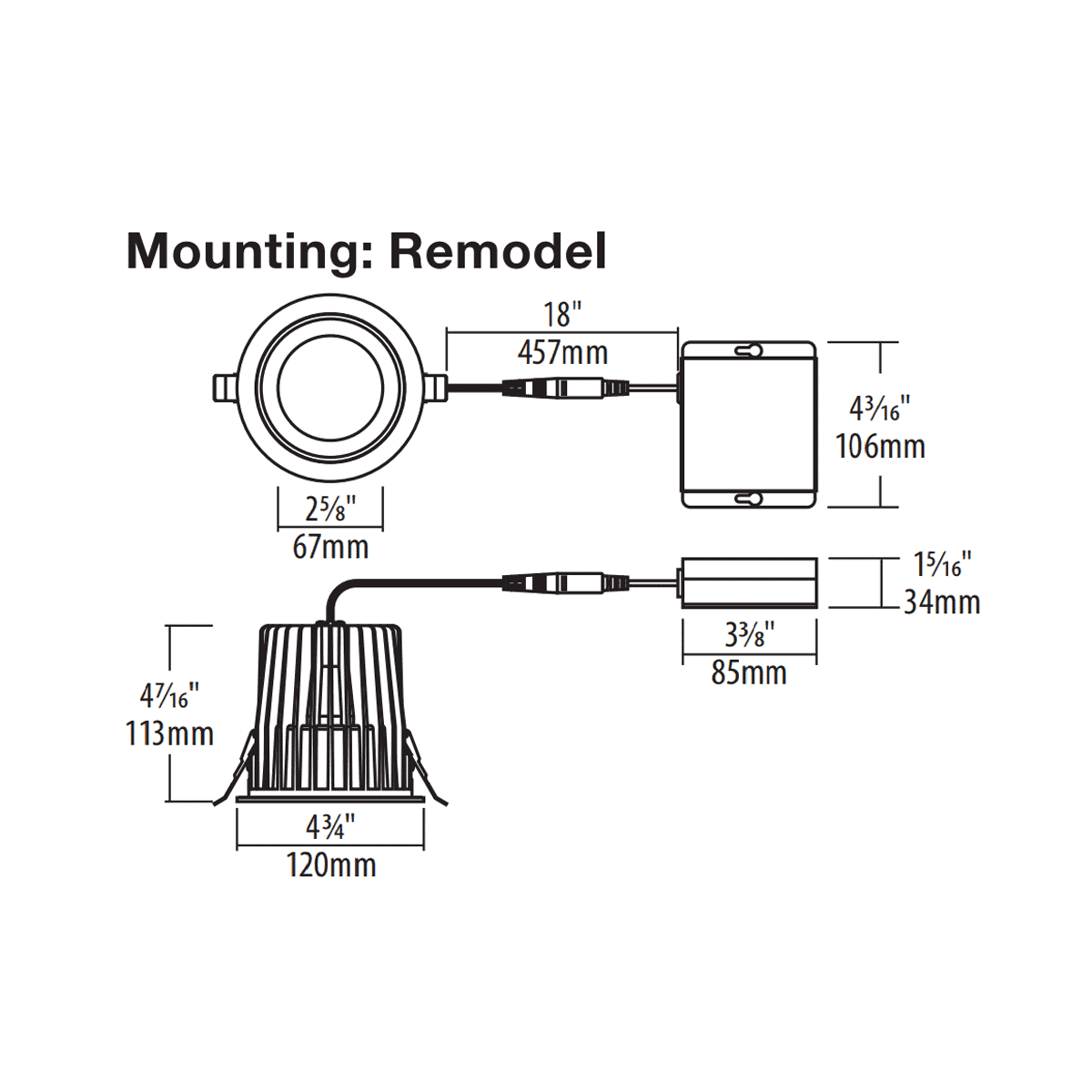

Mounting

• Mounting Includes two spring loaded clips to attach to any ceiling material, up to 1.5″ thick. Compatible with standard 3.5″ nominal hole cut sizes.

LED Driver

• Extruded aluminum hardwire box with dimmable class II electronic LED driver with 100-135V AC input.
• Includes an 18″ FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.
• Other optional drivers available.
• Quick Connect push-in Terminals Three “Quick Connect” push-in terminals for fast and easy wiring.

Minimum Starting Temperature

• -40°C (-40°F)
