Body:

• Durable airtight aluminum body with heat sink to provide maximum airflow for the LED light source.

LED Characteristics:

• This general application light fixture in 7 to 30 watt options that maintains uniform intensity producing up to 2325 lumens; with a typical CRI of 95. On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K color temperatures.

Dimming:

• 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers. 0-10V dimming capability available with commercial driver (see dimming compatibility list).

Beam Spread:

• The fixture lens provides 20°, 30°, 40° and 60° beam spread options.

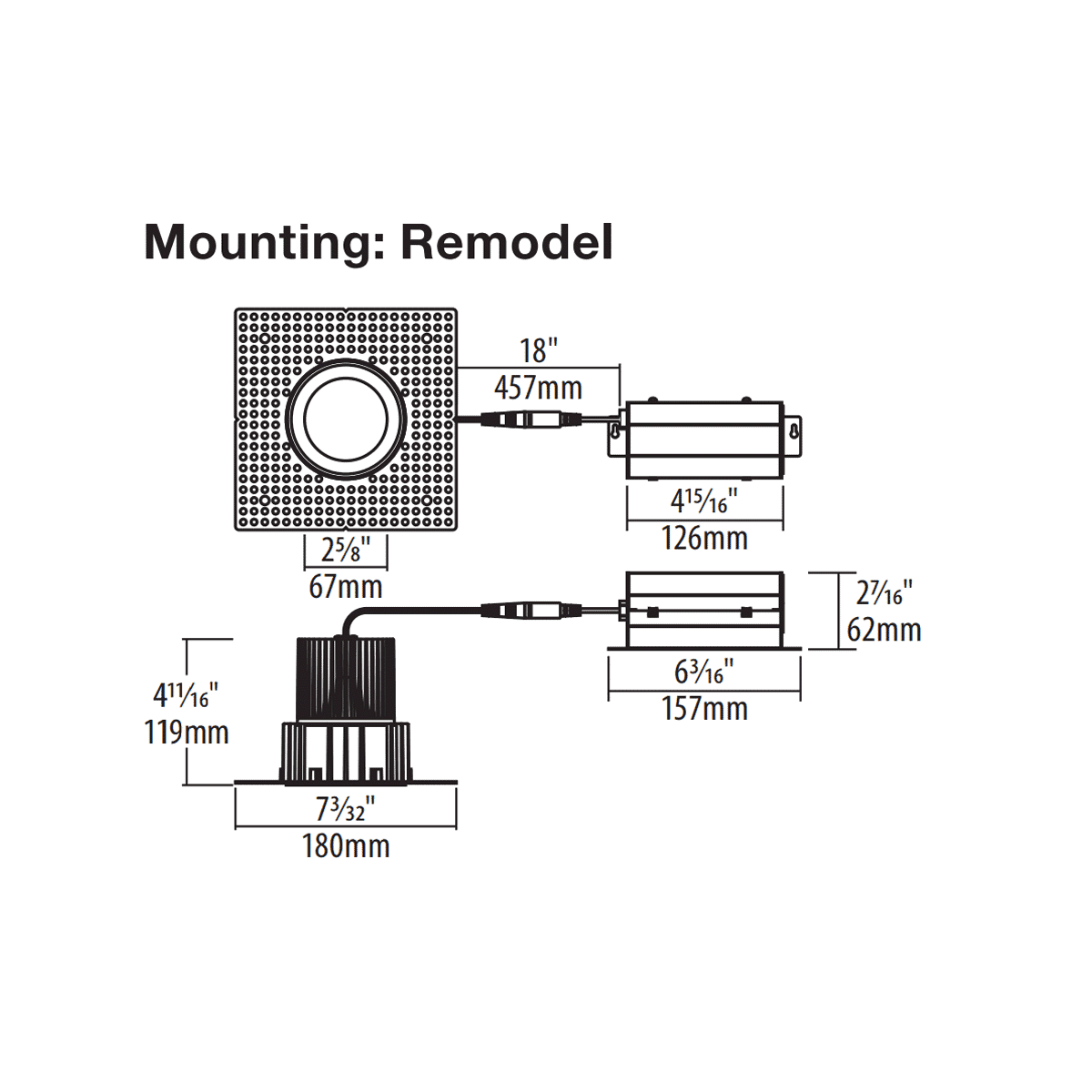

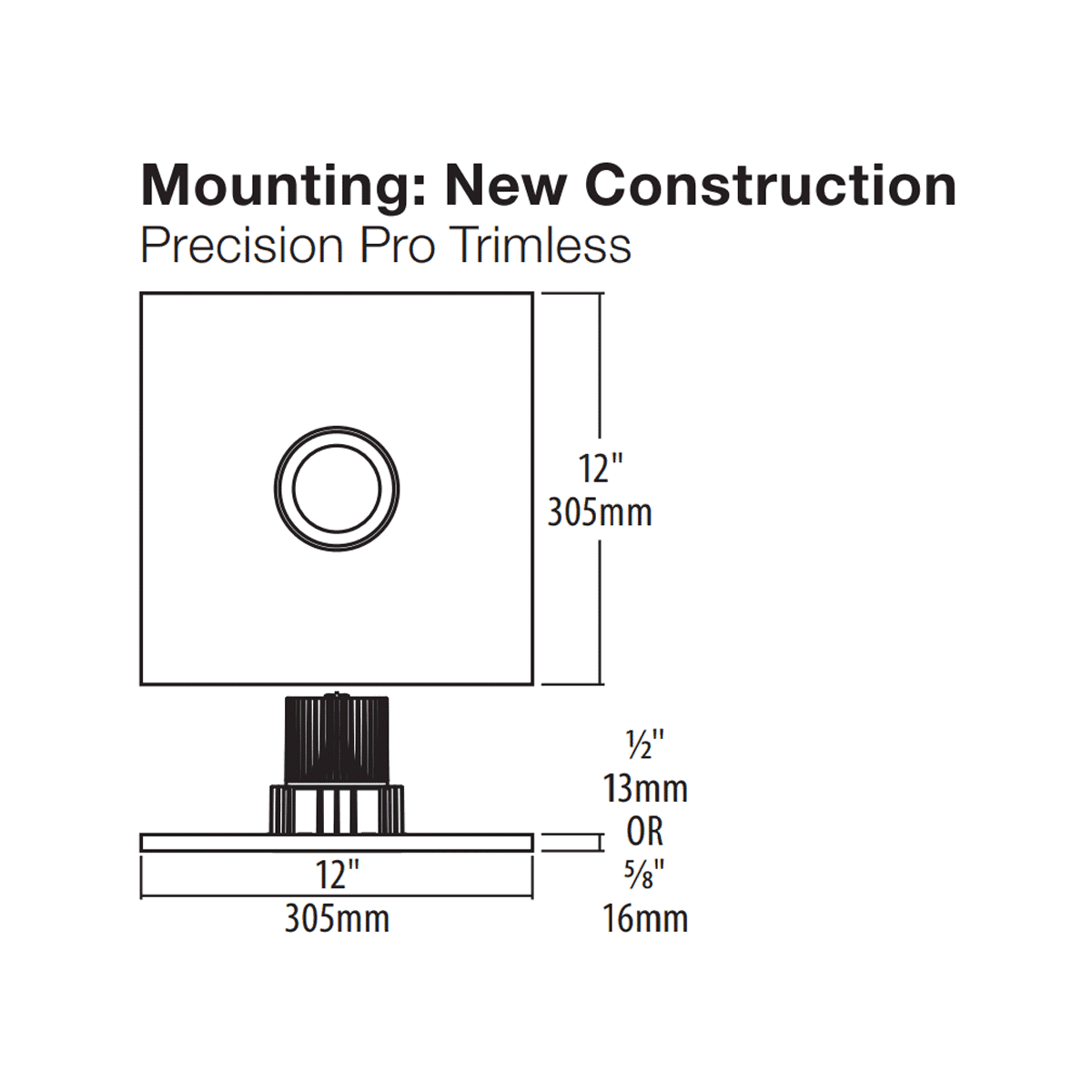

Mounting:

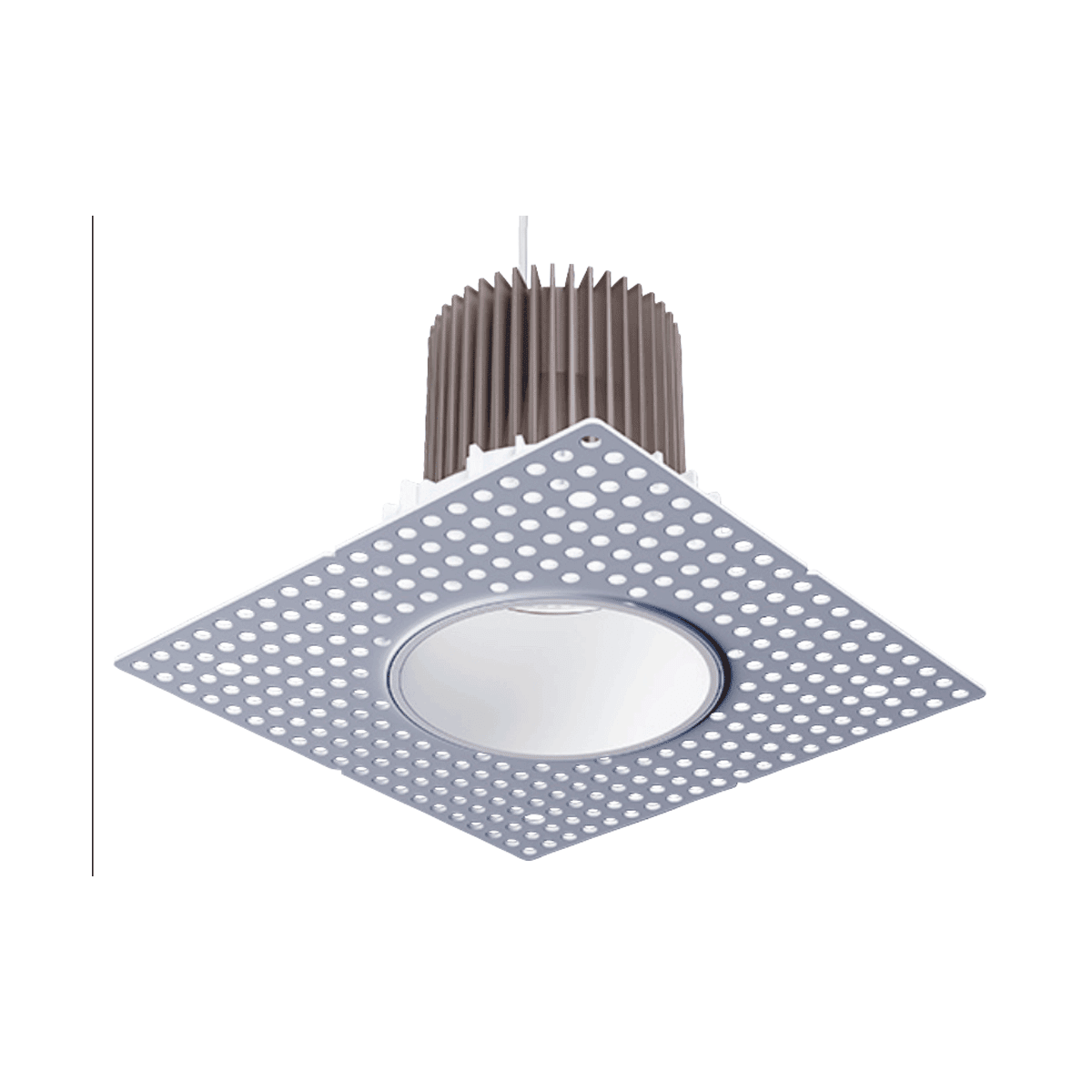

• Trimless mudding frame with included mud stopper to attach to drywall ceilings. Maximum ceiling thickness 17⁄8″.
