Body

• Durable airtight aluminum body with heat sink to provide maximum airflow for the LED light source.

LED Characteristics

• This general application light fixture available in 17, 20 and 33 watt LED module that maintains uniform intensity producing up to 2500 lumens; with a typical CRI of 90. On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K , 4000 K and 5000 K color temperatures.

Dimming

• 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers. 0-10V dimming capability available with commercial driver (contact factory for list of compatible dimmers).

Beam Spread

• The fixture lens provides 40° or 60° beam spread.

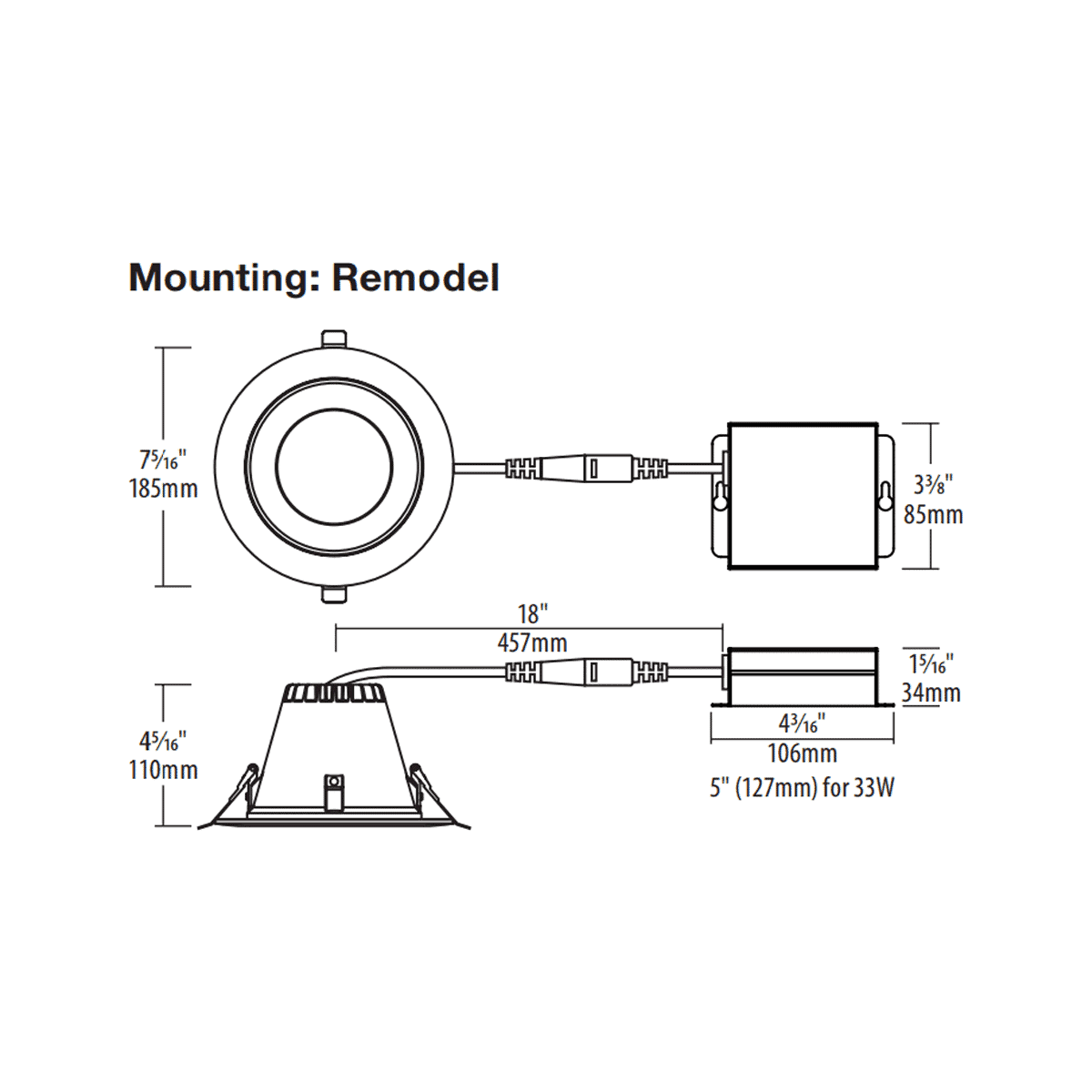

Mounting
Includes two spring loaded clips to attached to any ceiling material. Compatible with 5″ and 6″ nominal hole cut sizes.

LED Driver

• Extruded aluminum hardwire box available with 370mA, 480mA and 750mA dimmable class II electronic LED driver with 100-135V AC input.
• Includes an 18″ FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings. Optional commercial driver 120-347V available.

Quick Connect push-in terminals

• Three “Quick connect” push-in terminals for fast and easy wiring.
• Minimum Starting Temperature
• -40°C (-40°F)

Environment

• Suitable for wet locations.
• Suitable for indoor/outdoor applications.
• Approved for direct contact with insulation.
• Air tight
